2003-2004

Vehicle Build Date 09/22/03 and Before
Engine Serial Number 6,000,000-6,155,636
18mm Head and Engine Block Dowels
ICP Sensor located at rear of engine in high pressure oil pump cover
Log style oil rail
Buss Bar style Glow Plug Harnesses
10 blade turbine wheel
2 turbo pedestal bolts horizontal, one vertical

2004.5
Vehicle Build Date 09/23/03-07/18/2004
Engine Serial Number 6,155,637-6,344,942
18mm Head and Engine Block Dowels
ICP Sensor located at front of passenger side valve cover

Wavy style oil rail
13 blade turbine wheel
All turbo pedestal bolts horizontal

2005-2006
Vehicle Build Date 07/19/2004-01/11/2006
Engine Serial Number 6,213,261-6,299,092 & 6,560,521-6,723,721
18mm Head and Engine Block Dowels
ICP Sensor located at front of passenger side valve cover
Wavy style oil rail
Cast iron high pressure oil pump
13 blade turbine wheel
All turbo pedestal bolts horizontal

2006-2010

Vehicle Build Date
F-Series 01/12/2006-12/18/2006
E-Series 02-01-2006

Engine Serial Number
F-Series 6,299,093-6,414,752 & 6,723,722-6,908,443
E-Series 6,299,093 & UP

20mm Head and Engine Block Dowels

ICP Sensor located at front of passenger side valve cover
Wavy style oil rail
Cast iron high pressure oil pump
13 blade turbine wheel
All turbo pedestal bolts horizontal

Showing 1 to 9 of 63 items
-18%
Sold Out
Diamond Advantage DA2251307 2003-2004 Ford 6.0L Reman Fuel Injector Diamond Advantage DA2251307 2003-2004 Ford 6.0L Reman Fuel Injector

Diamond Advantage DA2251307 2003-2004 Ford 6.0L Reman Fuel Injector

-18%

$192.86

$235.71

Application: 2003-2004 Ford F-Series Pickup, Excursion, & E-Series Van 6.0L Powerstroke Diesel OE Cross Reference:3C3Z9E527AE3C3Z9E527ABRM3C3Z9E527EBRM3C3Z-9E527-ARMCN-5020-RMCN-60531843089C911843089C951878282C92AP609006918-PP...

-35%
Sold Out
Diamond Advantage DA2251308 2004.5-2010 Ford 6.0L Reman Fuel Injector Diamond Advantage DA2251308 2004.5-2010 Ford 6.0L Reman Fuel Injector

Diamond Advantage DA2251308 2004.5-2010 Ford 6.0L Reman Fuel Injector

-35%

$154.29

$235.71

Application: 2004.5-2010 Ford F-Series Pickup, Excursion, & E-Series Van 6.0L Powerstroke Diesel OE Cross Reference:4C3Z9E527AA4C3Z-9E527-BRM7E7Z-9E527-AACN-5019-RM1844751C21845150C921846692C11846692C21877748C11878284C911878285C91187998C91AP60901...

-4%
Sold Out

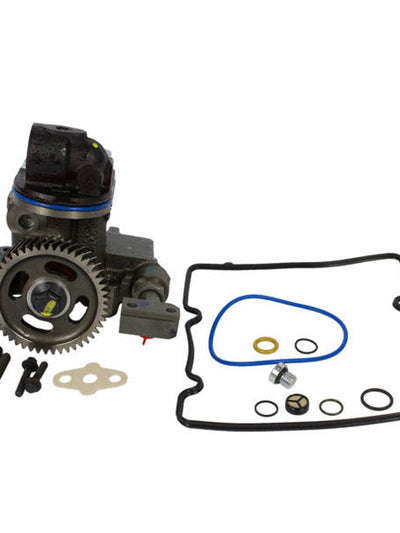

Diamond Advantage DA2251311 2005-2010 Ford 6.0L Reman High Pressure Oil Pump Diamond Advantage DA2251311 2005-2010 Ford 6.0L Reman High Pressure Oil Pump

Diamond Advantage DA2251311 2005-2010 Ford 6.0L Reman High Pressure Oil Pump

-4%

$807.41

$842.20

Application: 2005-2010 Ford F-Series Pickup & E-Series Van 6.0L Powerstroke Diesel OE Cross Reference:5C3Z-9A543-ARMHPP-12-RM5010134R941842410C911847084C931847865C911882919C924304329R914307216R91AP63661 Features...

-27%
Diamond Advantage DA2251312 2003-2004.5 Ford 6.0L Reman High Pressure Oil Pump Diamond Advantage DA2251312 2003-2004.5 Ford 6.0L Reman High Pressure Oil Pump

Diamond Advantage DA2251312 2003-2004.5 Ford 6.0L Reman High Pressure Oil Pump

-27%

$546.15

$745.23

Application: 2003-2004.5 Ford F-Series Pickup, Excursion & E-Series Van 6.0L Powerstroke Diesel OE Cross Reference:3C3Z-9A543-AARMHPP-10-RM1838828C911843045C922591022C91HP032XAP6362573920598620032R98620032R ...

-26%
Diamond Advantage DA2251323 2003-2006 Ford 6.0L 18mm Reman Cylinder Head Diamond Advantage DA2251323 2003-2006 Ford 6.0L 18mm Reman Cylinder Head

Diamond Advantage DA2251323 2003-2006 Ford 6.0L 18mm Reman Cylinder Head

-26%

$922.03

$1,250.00

Application: 2003-2006 Ford F-Series Pickup, Excursion, & E-Series Van 6.0L Powerstroke Diesel ***Build date cutoff...

-26%

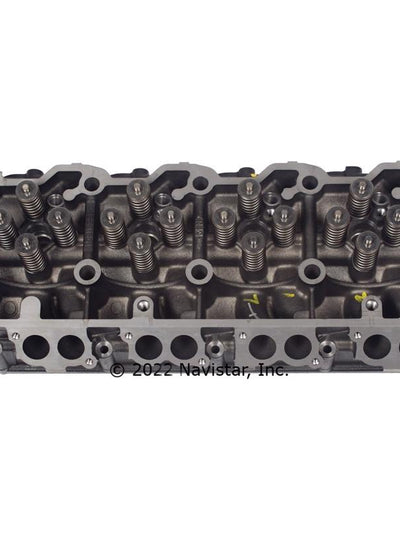

Diamond Advantage DA2251324 2006-2010 Ford 6.0L 20mm Reman Cylinder Head Diamond Advantage DA2251324 2006-2010 Ford 6.0L 20mm Reman Cylinder Head

Diamond Advantage DA2251324 2006-2010 Ford 6.0L 20mm Reman Cylinder Head

-26%

$922.93

$1,250.00

Application: 2006-2010 Ford F-Series Pickup & E-Series Van 6.0L Powerstroke Diesel ***Build date 01/12/2006 and...

-13%
Sold Out

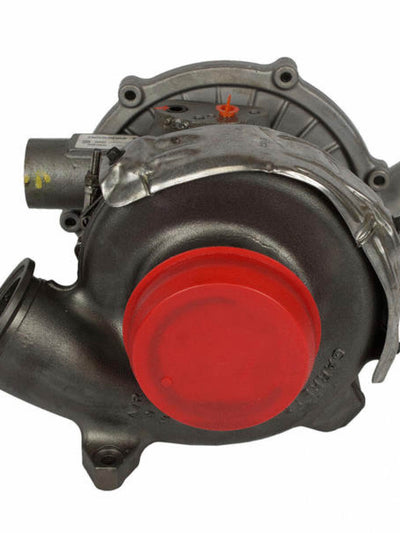

Diamond Advantage DA2251333 2004.5-2010 Ford 6.0L Reman Turbocharger Diamond Advantage DA2251333 2004.5-2010 Ford 6.0L Reman Turbocharger

Diamond Advantage DA2251333 2004.5-2010 Ford 6.0L Reman Turbocharger

-13%

$943.00

$1,082.80

Application: 2004.5-2010 Ford F-Series Pickup 6.0L Powerstroke Diesel PRICE INCLUDES INSTALL KIT WITH ORINGS AND...

-40%
Sold Out
Diamond Advantage DA2251336 2003-2004 Ford 6.0L Reman Turbocharger Diamond Advantage DA2251336 2003-2004 Ford 6.0L Reman Turbocharger

Diamond Advantage DA2251336 2003-2004 Ford 6.0L Reman Turbocharger

-40%

$946.73

$1,574.23

Application: 2003-2004 Ford F-Series Pickup 6.0L Powerstroke Diesel PRICE INCLUDES INSTALL KIT WITH ORINGS AND...

-8%
Sold Out

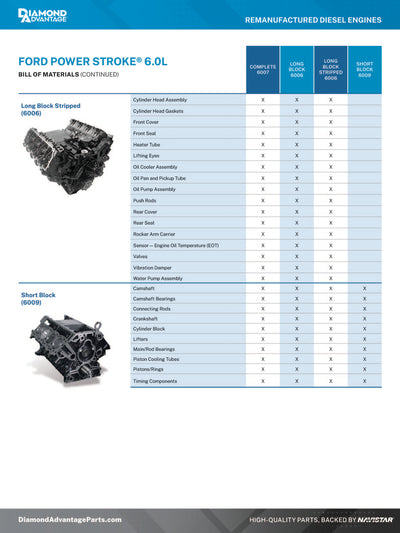

Diamond Advantage DA2251353 2006-2010 Ford E-Series 6.0L Reman Complete Engine Diamond Advantage DA2251353 2006-2010 Ford E-Series 6.0L Reman Complete Engine

Diamond Advantage DA2251353 2006-2010 Ford E-Series 6.0L Reman Complete Engine

-8%

$12,601.21

$13,648.05

***ENGINES MAY TAKE MORE THAN 8 WEEKS TO BE DELIVERED.******PLEASE CALL FOR AVAILABILITY BEFORE PURCHASING,...
